FILMTEC MEMBRANE

G.E. PURTREX SPUN POLYPROPYLENE

SEDIMENT FILTER CARTRIDGES

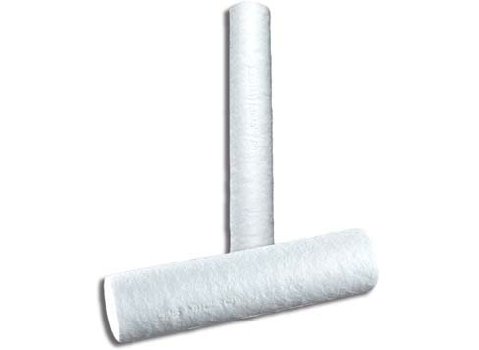

PURTREX SPUN POLYPROPYLENE SEDIMENT FILTER CARTRIDGES

*PRICE LIST*

*FACT SHEET*

Benefits and Features:

The Purtrex depth filter is an exceptional value for general applications where long life, high purity and low change-out frequency are required. Produced through GE Water patented melt blown microfiber technology, Purtrex is a 100% pure polypropylene depth filter with exceptional dirt-holding capacity. Purtrex true-graded density filter matrix (lower density at the surface of the filter with progressively higher density toward the center) captures particles throughout the entire filter depth. This translates to longer life and fewer change-outs than existing string-wound or resin-bonded filters. Purtrex contains no wetting agents, solvents, antistatic agents or binders, and meets the requirements of the FDA for food and beverage contact. The filter incinerates to trace ash for easy disposal.

Applications

Potable water filtration

Chemical filtration - wide chemical compatibility

Plating baths

Amine Filtration

Meets FDA compliance for food and beverage contact

Markets Served

Food and Beverage

Electronics

Pre-Reverse Osmosis

Metal Finishing

Oil and Gas

Pulp and Paper

Fine Chemicals

Available Micron Ratings

1, 3, 5, 10, 20, 30, 50, and 75 microns

Materials of Construction

Filtration Media................................Polypropylene

Endcaps and Adapters ..................Polypropylene

Product and Ordering Dimensions

Nominal Outside Diameter 2.50 inch (6.4 cm)

Nominal Inside Diameter 1 inch (2.5 cm)

Example model number may look like this: PX05-9 7/8

Example: PX 05 9 7/8 Y Y P

Product Name Micron Rating Cartridge Length End 1 Adapter End 2 Adapter Gasket Material

PX =

I.D. = 1 inch
(2.5 cm)

O.D. = 2 1/2 inch
(6.4 cm)
01 = 1 9 3/4 (24.8) Y = 1 inch Open End Gasket Y = 1 inch Open End Gasket P = Santoprene* (Gasket Only)

03 = 3 9 7/8 (25.1) L = Extended Core K = Self Seal Spring

05 = 5 10 (25.4) E = 222 O-Ring H = Fin O-Rings

10 = 10 19 1/2 (49.5) X = Standard Purtrex Plain End S = Solid End
S = Silicon

E = EPDM

20 = 20 20 (50.8) X = Standard Purtrex Plain

30 = 30 29 1/4 (74.3)

50 = 50 30 (76.2)

75 = 75 40 (01.6)

50 (127.0)

PLACE ORDER

PURTREX SPUN POLYPROPYLENE

SEDIMENT CARTRIDGES

DIAM x LENGTH MICRON CASE QTY LESS THAN CASE 1 QTY CASE 5 QTY CASES 10 CASES

1. PX05-4-7/8 2.5 x 4 7/8 5 80 $1.70 $1.50 $1.40 $1.20

2. PX01-9-7/8 2.5 x 9 7/8 1 40 $2.20 $1.90 $1.70 $1.50

3. PX03-9 7/8 2.5 x 9 7/8 1 40 $2.20 $1.90 $1.70 $1.50

4. PX05-9 7/8 2.5 x 9 7/8 5 40 $2.10 $1.70 $1.50 $1.30

5. PX10-9 7/8 2.5 x 9 7/8 10 40 $2.00 $1.70 $1.50 $1.30

6. PX20-9 7/8 2.5 x 9 7/8 20 40 $2.00 $1.70 $1.50 $1.30

7. PX30-9 7/8 2.5 x 9 7/8 30 40 $2.00 $1.70 $1.50 $1.30

8. PX50-9 7/8 2.5 x 9 7/8 50 40 $2.00 $1.70 $1.50 $1.30

9. PX75-9 7/8 2.5 x 9 7/8 75 40 $2.00 $1.70 $1.50 $1.30

10. PX01-20 2.5 x 20 1 20 $4.40 $3.80 $3.40 $3.00

11. PX05-20 2.5 x 20 2 20 $4.20 $3.60 $3.20 $2.80

12. PX10-20 2.5 x 20 10 20 $4.00 $3.40 $3.00 $2.60

13. PX20-20 2.5 x 20 20 20 $4.00 $3.40 $3.00 $2.60

14. PX30-20 2.5 x 20 30 20 $4.00 $3.40 $3.00 $2.60

15. PX50-20 2.5 x 20 50 20 $4.00 $3.40 $3.00 $2.60

16. PX75-20 2.5 x 20 75 20 $4.00 $3.40 $3.00 $2.60

20. PX05-30 2.5 x 30 5 20 $6.30 $5.40 $4.80 $4.20

30. PX05-40 2.5 x 40 5 20 $8.10 $7.10 $6.30 $5.50

G.E. OSMINICS BIG BLUE 10" & 20"

ITEM DIAMETER LENGTH MICRON CASE QTY LESS than CASE FULL CASE

51. LD-01-10 4.25" 10" 1 10 $11.00 $9.00

52. LD-01-20 4.25" 20" 1 5 $20.00 $16.00

53. LD-05-10 4.25" 10" 5 10 $11.00 $9.00

54. LD-05-20 4.25" 20" 5 5 $20.00 $16.00

55. LD-20-10 4.25" 10" 10 10 $11.00 $9.00

56. LD-20-20 4.25" 10 20 10 $20.00 $16.00

57. LD-30-10 4.25" 10" 30 10 $11.00 $9.00

58. LD-30-20 4.25" 20" 30 5 $20.00 $16.00

59. LD-50-10 4.25" 10" 50 10 $11.00 $9.00

60. LD-50-20 4.25" 20" 50 5 $20.00 $16.00

PLACE ORDER
