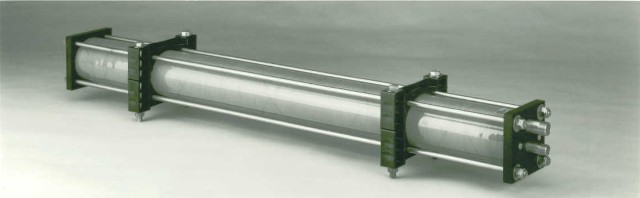

SEA WATER FIBERGLASS HOUSING
2.5" x 21", 2.5" x 40", 4" x 40", 4" x 80"
1500 PSI
EASY INSTALL & MOUNTING*TOLERATES HIGHER PRESSURES*DURABLE LESS CORROSIVE END PLUGS
CCSW-2521 - $325 CCSW-2540 - $395 CCSW-4040(1) - $695 CCSW-4080(2) - $865

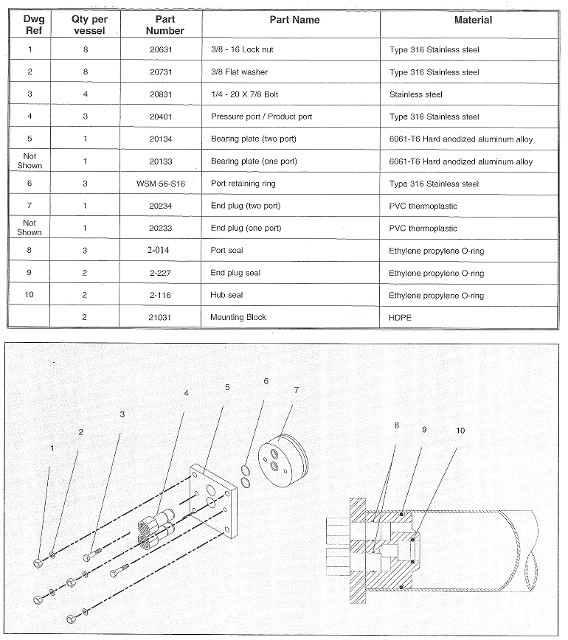

INSTALL DIAGRAM
PAGE 1 PAGE 2
- The 2S pressure vessel is designed for use as a sea water RO filter housing
- Maximum working pressure of 1000 psi
- The simplified end closure design is easy to assemble. No special tools are required
- The vessel can accommodate any standard 2.5" X 21" or 2.5" x 40" membrane
| Model No. |
(L) Length of vessel - port to port |
Element Capacity |
| 2S-2521 |
25.75 inches |
One 21" membrane element |
| 2S-2540 |
44.75 inches |
One 40" membrane element |
| 2S-2580 |
84.75 inches |
Two 40" membrane elements |
- The 4S pressure vessel is designed for use as a sea water RO filter housing.
- Maximum working pressure of 1000 psi.
- The simplified end closure design is easy to assemble. No special tools are required.
- The vessel can accommodate any standard 4.0" X 40" membrane
| Model |
(L) Length of vessel |
Number of 40 inch membrane elements |
| 4S-1D |
45.25 inches |
One 40" membrane with standard 0.75 pwt |
| 4S-2D |
85.25 inches |
Two 40" membranes with standard 0.75 pwt |
| 4S-1A |
50.00 inches |
Any 40" membrane style (uses element adapter) |
| 4S-2A |
90.00 inches |
Any two 40" elements (uses element adapter) |
